CATS
: Concealed Automatic Threshold Seals
|
| |
For
the Bottom of the Doors |
|
|
All
CATS / DROP SEALS consists of aluminium casing
which surrounds a movable drop bar seal. This bar is actuated by a plunger, which
contacts the frame of the door while closing - forcing the drop bar to seal against
the floor or threshold. Their low closing force actuation does not allow it to
conflict with the operation of door closer operation. Installation is quick and
easy. Their symmetrical case provides even flush mounting in case of CATS - 4 |
|
Available
in sizes from 450 mm to 2500 mm ( any size made to order ). |
|
In
other words - These drop seals are concealed under the door by making a grove.
They lift themselves as soon as the door is opened by few millimeters & come
down and seal the gap as and when the door is closed. |
|
They
operate automatically once the black button (adjusting screw) comes in contact
with the door frame. |
|

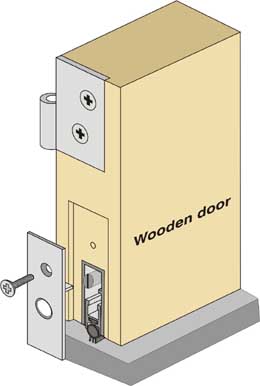

They
can also be fitted into the bottom rail of a Timber, Steel, Aluminium or Composite
Doors by the fabricator. These seals have been tested for their durability for
more than 5,00,000 times, without failure. |
|
CATS
1 & 2
|
|
![](images/cats/1.jpg) | Location | : | Single
and double, but Hinged doors. | Min/Max
Gap | : | 3mm
/ 14mm | Seal
Size | : | 9"
to 2.5 METERS . (Custom sizes can be made and supplied.) | Finish | : | Clear
Anodized Finish | Fixing
Method | : | Concealed,
with supporting Side Clamps / Screws supplied with every seal. | Seal
Material | : | PVC
(Black) or Silicon | Adjustment
| : | Adjustment
Screw is provided in every profile for adjusting the movement of the lower portion
of the seal. |
| | | ![](images/cats/2.jpg) |
|
General
Applications of CATS : |
|
- For exclusion of Dust,
Draught, Moisture, Insects, Smoke, Fumes, Light, Sound etc.
- All
exterior doors of Shops, Commercial Offices, Banks, Public Buildings, Hospitals,
etc.
- Hotel /
Motel rooms guest room doors , interconnecting doors, Consulting rooms, Board
rooms, Surgeries - Operation Theaters, Management Offices, BPOs, Factories
/ Shop floors, Engineering Tool rooms Computer Rooms, Hub Rooms, Electrical Control
Rooms
- Plant
/Boiler / Lift and Pump Rooms * Clean Rooms, Interlocking Doors and Laboratories
- Class
rooms and Libraries * Photographic and Dark rooms * Art and Theater / Drama Studios
- Sports
Rooms and Gymnasiums. Museums * Cool / chiller rooms, etc. Best installation are
with Threshold Plates.
|
|
|
|
|
|

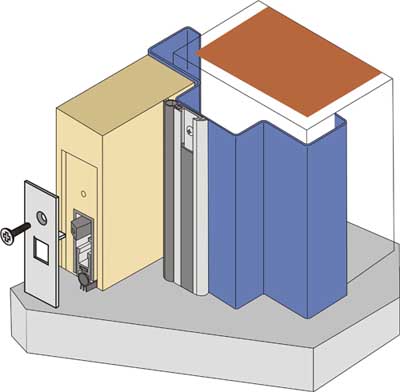

Proper
sealing of doors involve more than one profile. This is a Widely Accepted
Combinations of seal. |
|
|
|
|
|
|
|
|
|
|
